CE approved three phase electric motor for circular saw

FOB Reference Price:Get Latest Price
$28.49 - $34.33 / Set | 10 Set/Sets (Min. Order)
Output Power:
0.18kw, 0.25kw, 0.37kw, 0.55kw
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Hongma
Model Number:
YE1/YE2/YE3
Type:
Induction Motor
Frequency:
50/60Hz
Protect Feature:
Totally Enclosed
Phase:
Three-phase
Certification:
CCC, CE, ISO9001:2008
AC Voltage:
220/380V, 380/660V, 230/400V, 400V/690V
Efficiency:
IE 1
Product Name:
CE approved three phase electric motor for circular saw
Frame Size:
71
Housing:
Aluminum
Pole:
2P & 4P &6P
Protection Class:
IP44, IP54, IP55
Insulation Class:
B\F\H
Duty:
S1
Wire:
100% cooper electric motor
Warranty:
12 Months
Altitute:
not exceed 1000m
Supply Ability
Supply Ability:
1500 Piece/Pieces per Month CE approved three phase electric motor for circular saw
Packaging & Delivery
Packaging Details
CE approved three phase electric motor for circular saw
Frame size under 132: packed by carton box, and then several pcs packed together in a wooden Pallets.
Frame size above 160 : Only packed by a wooden pallets per set..
Port
Ningbo

CE approved three phase electric motor for circular saw

Product Description

Electric Motor 1HMA-IE1 (EFF2) Series Aluminum Housing Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor. The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames within the range of frame size 56 to 160.

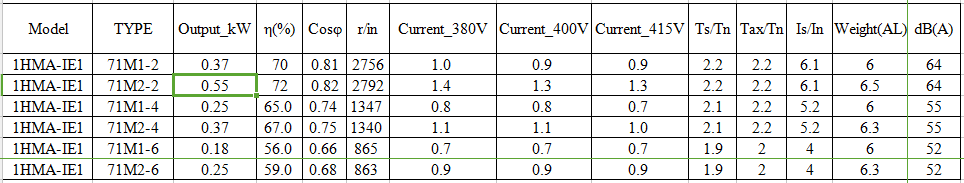

CE approved three phase electric motor for circular saw Technical data(FS-71- 2P & 4P & 6P ):

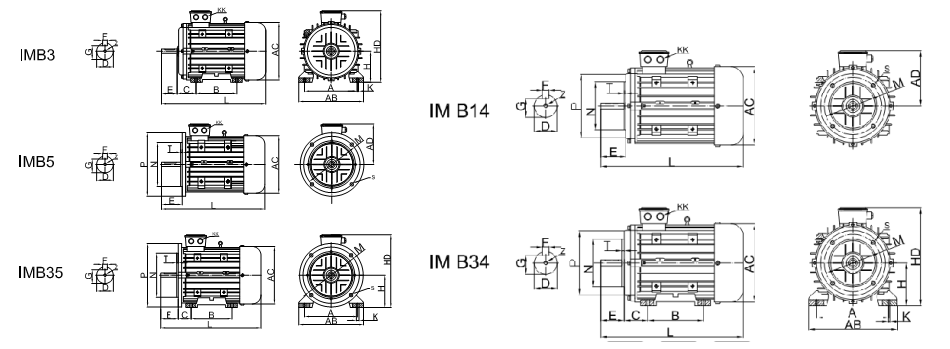

CE approved three phase electric motor for circular saw Mounting Dimension (FS-71- 2P & 4P  & 6P):






B3 ,B5, B35 mounting dimension :




B14& B34 mounting dimension :
TYPEMOUNTING DIMENSIONSB14-A B14-B OVERALL DIMENSIONS
EFF LEVELFrame SizeABCDEFGHKZKKPMNSTPMNSTABACADHDL
1HMA-IE17111290451430511717M5×121-M20×1.51058570M62.514011595M83132133114185240

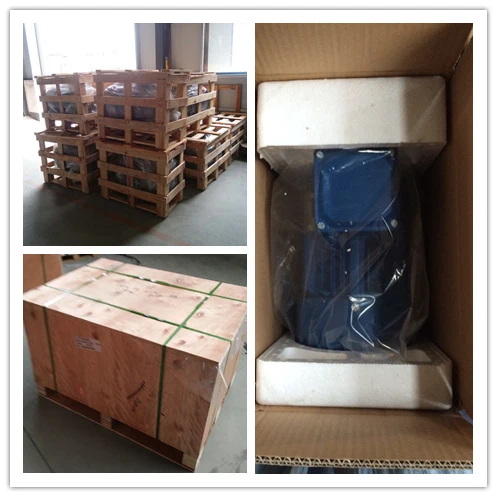

Packaging & Shipping

 Frame size under 132: packed by carton box, and then several pcs packed together in a wooden Pallets.
Frame size above 160 : Only packed by a wooden pallets per set.




Shipping



Delivery time : 10-45days .










Company Information



Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001:2008 Quality Management Certificate, CE conformity and China CCC authentication. What’s more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company’s main products are: IE1/IE2/IE3/IE4 (1,2,3,4)HM Series Three Phase Asynchronous Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor; HMD Series Variable Speed Motor, HMEJ(DC/AC) Series Self-Braking Electric Motor ;  HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, Gost R standard Motor .

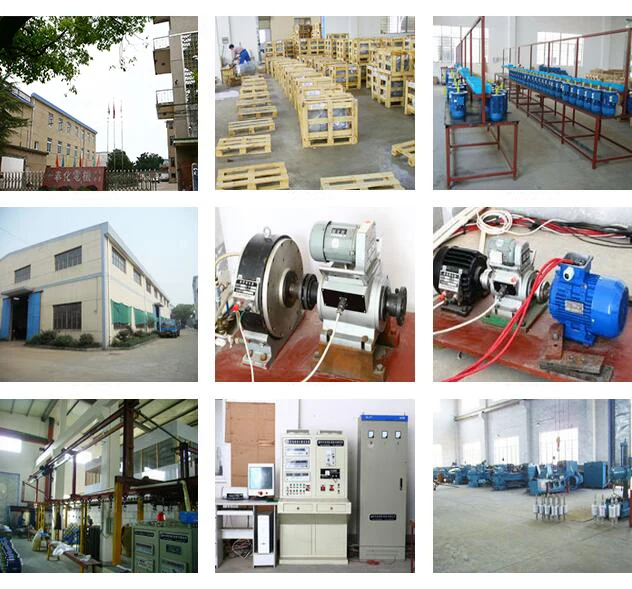

Factory photoes :

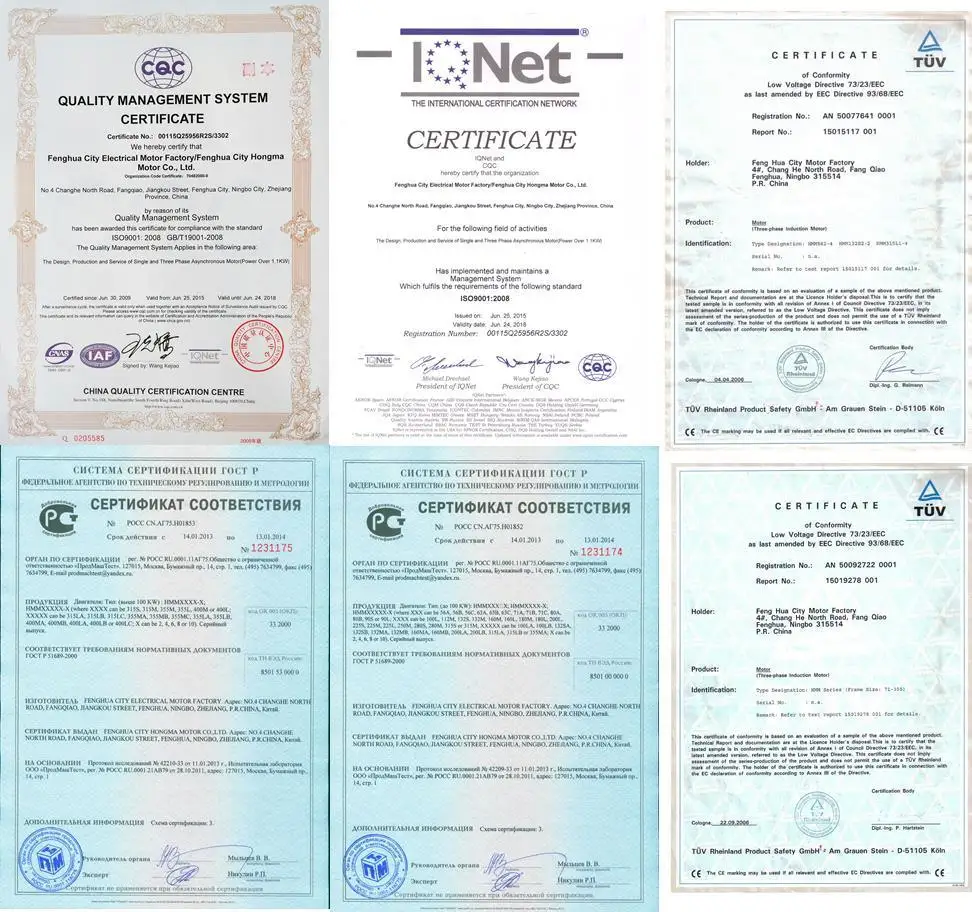

Our Certification :




FAQ



Q1. Do you accept OEM order?
Yes, CE approved three phase electric motor for circular saw  are acceptable.

Q2. What’s your payment terms?
We accept T/T(30% down payment and 70% paid before delivery), Pay pal, Western union, and Money Gram.
Q3. What’s the minimum order quantity? How long is the delivery time?
Both MOQ and delivery time need to refer to the specific products. Usuall we deliver the motors in 10-45 days, please

contact our sales for details.
Q4. What’s the way of transportation?
Express, air and ocean shipments are all available.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
B. With more than 25 years experience in this filed, we have the ability to provide good service and products in low cost
C. Adequate inventory to make sure that our clients can obtain goods in a short period.



Contact Info.
