4 poles IE1 electric ac motor high quality manufacturer price

FOB Reference Price:Get Latest Price
$23.03 - $15,819.66 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
HM
Type:
Asynchronous Motor
Frequency:
50/60Hz
Output Power:
0.18KW-315KW
Protect Feature:
Totally Enclosed
Phase:
Three-phase
Certification:
CCC, CE
AC Voltage:
208-230 / 240 V
Efficiency:
IE 1
Product Name:
4 poles IE1 electric ac motor high quality manufacturer price
Application:
General Machinery
Speed:
1400-1500RPM
Voltage:
220/380V 380/660V 230/400V 400/690V 440V
Color:
Blue
Protection class:
IP44/IP54/IP55
Housing:
Aluminum Housing Motor
Supply Ability
Supply Ability:
1500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Frame size under 132: packed by carton box, and then several pcs packed together in a wooden box.
Frame size above 160 : Only packed by a wooden box per set.
Port
Ningbo
Lead Time :
10-45DAYS

4 poles IE1 electric ac motor high quality manufacturer price

Product Description



1HMA-IE1 (EFF2) Series Aluminum Housing Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor. The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames. 1HMA-IE1 (EFF2) Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 56 to 160.

1HMA-IE1 (EFF2) Series Electric Motor Characteristics and Advantages:

Efficiency Class: IE1
Frame Size: H56-160
Poles: 4 poles
Rated Power: 0.06-18.5KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55, IP56
Insulation Class: B, F, H
Mounting Type:B3, B5, B14, B34, B35 multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M
ZJD_8975 (2)ZJD_8978 (2)

Packaging & Shipping

Frame size under 132: packed by carton box, and then several pcs packed together in a wooden box.
Frame size above 160 : Only packed by a wooden box per set.




Shipping



Delivery time : 10-45days .








Company Information

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001:2008 Quality Management Certificate, CE conformity and China CCC authentication. What’s more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company’s main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, Gost R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.

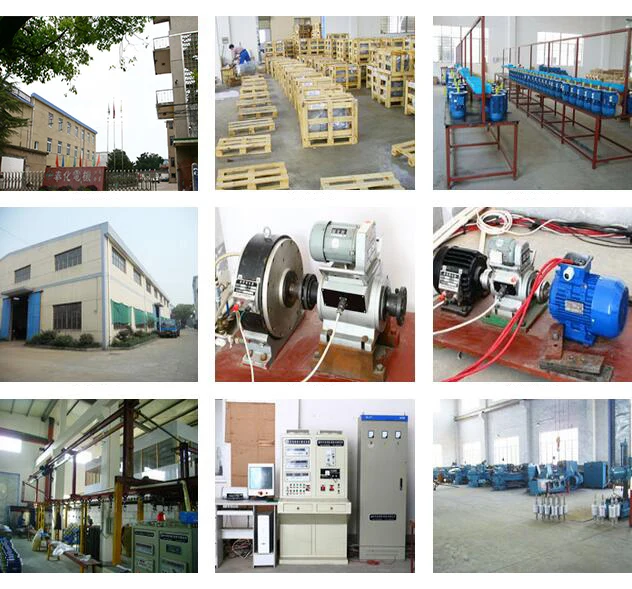

Factory photoes :




Our Certification :
